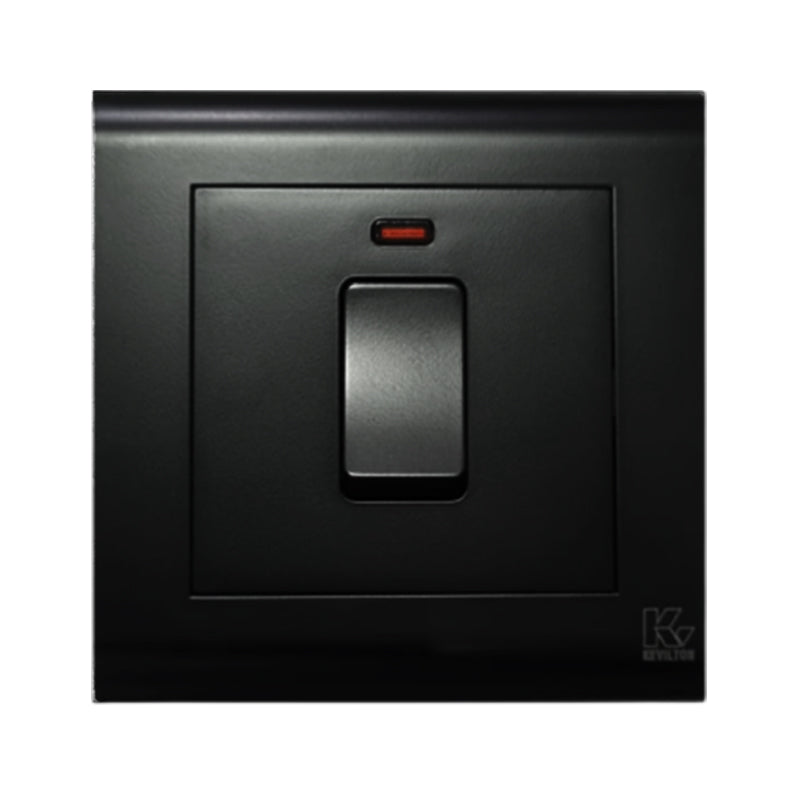

Kevilton Modular Jet Black 20A Double Pole With Indicator

Name: Kevilton Modular Jet Black 20A Double Pole With Indicator
Brand: LE.LK
Price: 2185.0 LKR
Availability: InStock

Rs 2,185.00 LKR

~~Rs 2,340.00 LKR~~ Rs 2,185.00 LKR

Sale Sold out

Product variants

Quantity

Integral rocker switch design with ON and OFF signs.
Embossed terminal markings on the rear housing ensure terminal identification that saves time.
Internal contact points covered with silver coating enhance the electric strength of the switch.
The front plate and back housing made from polycarbonate is of high impact strength and has fire retardant properties.
Easy removal of front plate and frame.
Alignment tolerance of mounting screw holes.
Elegant colours to select, colour combinations possible for outer frames.
Disconnects both live and neutral connections for safer electrical isolation.
Neon red indicator denotes power ON.
Kevilton offers life time warranty for the product.
Power Supply
Rated Voltage 250V AC
Rated Current (A) 20A
Steel Plate Size (H*W) 85mm x 84mm
Front Frame Size (H*W) 88mm x 86mm
Terminal Space Capacity 2 x 2.5mm2
Depth 17mm
Mounting Centers 60.3mm
Compatible Sunk Box Standard Sunk Box (Depth – 35mm)
Performance Parameters
Electrical Endurance 5000 cycles (10000 Movements)
Material Overview
Plastic Polycarbonate and Nylon-FR grade
Metal Brass, Phosphor Bronze, Insulated steel plate
